♦ Massive production for accurate thin-wall containers.
♦ High quality plastic caps production .
♦ Works with Demark In Mold Labelling(IML) system .
♦ Other products need fast packaging machine.
High end and high speed
Creative injection unit design
Clamping design special for packaging purpose

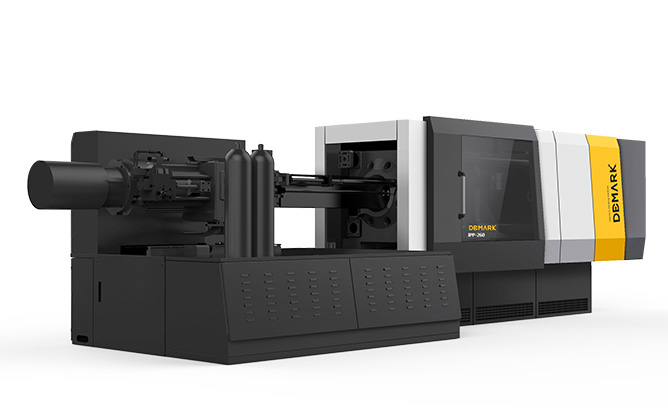

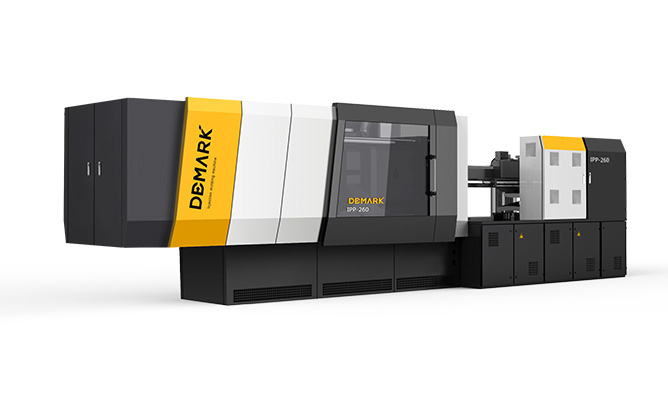

iPP high speed injection machine for packaging purposeiPP |
UNIT |
IPP150 |
iPP200 |
iPP260 |
IPP300 |
IPP400 |
|
INJECTION UNIT |
Screw L/D Ratio |
L/D |
25 |
25 |
25 |
25 |
25 |
Screw Diameter |
mm |
45 |
50 |
60 |
60 |
70 |
|
Injection Pressure |
kgf/cm2 |
1700 |
1700 |
1700 |
1700 |
1700 |
|
Shot Volume (max) |
cm3 |
325 |
442 |
790 |
790 |
1200 |
|
Shot Weight (PP) |
g |
230 |
323 |
575 |
575 |
875 |
|
Injection Speed (max) |
mm/s |
|
1000 |
1000 |
|
|
|
CLAMPING UNIT |
Clamping Force |
T |
150 |
200 |
260 |
300 |
400 |
Clamping Stroke |
mm |
490 |
550 |
550 |
580 |
600 |
|
Max/Min Thickness of Mould |
mm |
175/510 |
250~650 |
250~700 |
350/1000 |
500/1100 |
|
Space Between Tie Bars(WxH) |
mm |
510X510 |
570×570 |
630×630 |
780×780 |
920X920 |
|
Ejector Stroke |
mm |
125 |
150 |
150 |
200 |
200 |
|
Ejector Force |
T |
5 |
8 |
8 |
10 |
10 |
|
NO. of Ejector Pins |
pcs |
5 |
5 |
5 |
5 |
10 |
|
SYSTEM |
Max system pressure |
kg/cm2 |
160 |
160 |
160 |
160 |
160 |
POWER UNIT |
Main Motor Power |
KW |
35 |
44 |
56 |
74 |
84 |
Plasticization Motor Power |
KW |
44 |
54 |
58 |
58 |
71 |
|
Heater Input Capacity |
KW |
18 |
23 |
28 |
28 |
32 |
|
Others |
Machine Size(LxWxH) |
cm |
600x180x180 |
700x180x180 |
800x200x200 |
900x220x220 |
950x220x220 |
Machine Weight |
T |
8 |
10 |
12 |
17 |
25 |
TINCOO MACHINERY is a professional supplier devoted to the designing & production of big-scaled and multi-layer extrusion molding machine. The company is located on the south shore of Taihu Lake--Huzhou, with total investment of 10 million dollars, covering a total area of 58,000 square meters. Machines from the company are mainly for export, and have been exported to more than 80 countries in Asia, Mid-East, Europe, Africa, Australia, and Latin-America. The marketing network has covered all over the world.
There are 2 general departments in our company: machinery department & mold department. Machinery department focuses on designing and developing various plastic extrusion blows molding machine by learning foreign advanced techniques& administration faith; mold department focuses on mould design and manufacturing of preform mold& extrusion mold&blow mold. According to different character of different plastic material, we have successfully designed different machines, which are suitable for different products: container of PE, PVC, PP, PC, PETG, PS, PAN, PA, PPE, PPO, ABS, POM, TRA, etc(like big tank, collapsible container car plastic hollow part, office equipment,sport facility, toys, mechanical container,5 gallon PC container,tool box, etc). We have an experienced team will design, produce and offer service after service with great team spirit.High quality but reasonable price has been widely approved by our customers from local and abroad.
